| Hydraulic Drum Brakes 9” No Park Details | |
|---|---|
| Park Brake | No |
| Recommended maximum load on 13”/14” wheels | 1450 kg per pair |
| Recommended maximum load on 15”/16” wheels | 1200 kg per pair |
| Mounting Detail | 4 x 3/8” UNF x 101.6mm PCD Not equally spaced |
| Description | To Fit Axle Size | Number of Holes & PC |
|---|---|---|
| 9” Hydraulic mounting plate | 39mm Round | 4 Holes on 101.6mm PCD Not equally spaced |
| 9” Hydraulic mounting plate | 45mm Round | 4 Holes on 101.6mm PCD Not equally spaced |

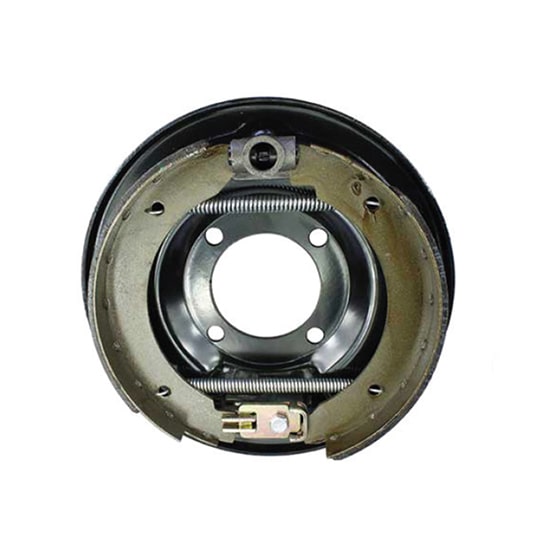

Hydraulic drum brakes are similar to those used in the automotive industry for many years and are reliable and efficient. The simplicity of hydraulic lines for instalation and maintenance and a perfect partner for on road over run brake system on trailers less than 2000 kg gross laden weight.
