Fixed Couplings

zoom img

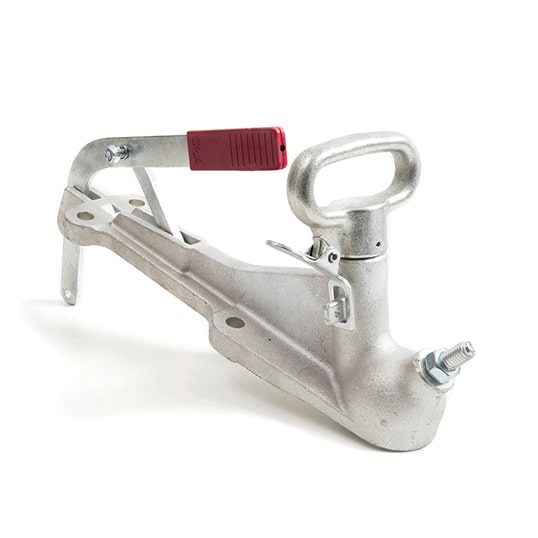

Fixed Couplings

Description: AK7 Pressed metal (to suit 50mm drawbar) 750 kg capacity.

Specifications
Capacity : 750 kg
Suits Ball Size: 50mm
Mounting Pattern: 50mm x 90mm
Hole Diameter: 12.2mm
Ball to First Hole: 110mm
Surface Finish: Zinc plated

This style of coupling is suitable to be used where either there are no brakes fitted to the trailer or the braking system does not require activation from a sliding or overrun coupling. Couplings are simple to attach to the towball and provide safe secure attachment of the trailer to the tow vehicle. Typical applications for domestic trailers up to 750 kg ATM (total loaded mass), where no brakes are required. For independent brake systems such as electric or power operated like the IQ7 system for marine trailers over 2000 kg ATM (total loaded mass), a fixed coupling is the appropriate selection. Fixed couplings for 50mm towballs are suitable for up to 3500 kg ATM (total loaded trailer mass) as long as the appropriate braking system is fitted to the trailer.
