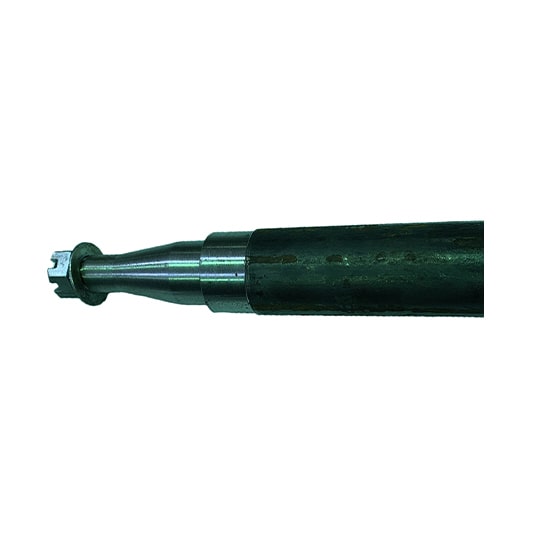

Bare Stub Axles

Axle Size (D)	Axle Beam Profile	Capacity Per Pair (kg)	Machining Profile and Detail	Length (L)
39mm	Round	750 kg	LM	250mm
39mm	Round	750 kg	LM	250mm
39mm	Round	750 kg	LM	305mm
40mm	Square	1000 kg	LM	205mm
40mm	Square	1000 kg	LM	250mm
40mm	Square	1000 kg	LM	270mm
40mm	Square	1000 kg	LM	205mm
40mm	Square	1000 kg	LM with 10” Electric brake mount plate	205mm
45mm	Square	1450 kg	LM marine	205mm
45mm	Square	1450 kg	LM marine with hydraulic caliper mount plate, left hand	250mm
45mm	Square	1450 kg	LM marine with hydraulic caliper mount plate, right hand	250mm
45mm	Square	1450 kg	LM marine	250mm
45mm	Round	1450 kg	SL	235mm
45mm	Round	1450 kg	SL	205mm
45mm	Round	1450 kg	SL marine	235mm
45mm	Round	1450 kg	SL marine	205mm
45mm	Round	1450 kg	SL marine	270mm
45mm	Round	1450 kg	SL with 10” Electric brake mount plate	270mm
45mm	Round	1600 kg	Parallel with 10” Electric brake mount plate	270mm
45mm	Round	1450 kg	SL with 9” hydraulic drum brake mount plate	270mm
45mm	Round	1450 kg	SL marine with hydraulic caliper mount plate suits 14” Rotor	270mm
45mm	Round	1450 kg	SL marine with mechanical caliper mount plate suits 16” Rotor	270mm
45mm	Square	1500 kg	1.5T	235mm
50mm	Square	2000 kg	2T with marine collar	330mm
50mm	Square	2000 kg	2T marine with hydraulic and mechanical caliper mount plate	330mm
50mm	Square	2000 kg	2T marine with hydraulic caliper mount plate	330mm
50mm	Square	2000 kg	2T with 12” Electric brake mount plate suits 2 piece hub drum	305mm
50mm	Square	2000 kg	2T with 12” Electric brake mount plate suits 1 piece hub drum	310mm
56mm	Round	2000 kg	2T	235mm
65mm	Round	3000 kg	3.0T	360mm
50mm	Square	2000 kg	2T with marine collar	330mm
