| Description | Type of drum | Maximum axle capacity | Bearings can be fitted to hub drums to suit these machining profiles | Popular wheel drilling patterns |
|---|---|---|---|---|
| 10” x 2 1/4” | Hub drum | 1000 kg | LM | Ford |
| 10” x 2 1/4” | Hub drum | 1450 kg | SL | Ford |
| 10” x 2 1/4’ | Hub drum | 1200 kg | SL | 6 stud LCR/ Nissan |
| 10” x 2 1/4’ | Parallel Hub Drum | 1600 kg | Parallel | 6 stud LCR/ Nissan |
| 10” x 2 1/4” | Hub drum | 1000 kg | LM | Commodore |
| 10” x 2 1/4” | Hub drum | 1450 kg | SL | Commodore |
| 10” x 2 1/4” | Hub drum | 1000 kg | LM | HQ |
| 10” x 2 1/4” | Hub drum | 1450 kg | SL | HQ |
| 10” x 2 1/4” | Hub drum | 1000 kg | LM | HT |
| 10” x 2 1/4” | Hub drum | 1450 kg | SL | HT |
| 10” x 2 1/4” | Hub drum | 1200 kg | SL | 5 stud LCR |
| 10” x 2 1/4” | Parallel Hub Drum | 1600 kg | Parallel | 5 stud LCR |
| 10” x 2 1/4” | Hub drum | 1200 kg | SL | Range Rover/Land Rover Defender |
| 10” x 2 1/4” | Parallel Hub Drum | 1600 kg | Parallel | Range Rover/Land Rover Defender |
| 10” x 2 1/4” | Hub drum | 1200 kg | SL | Ford F100 |
| 10” x 2 1/4” | Hub drum | 1600 kg | Parallel | Ford F100 |
| 10” x 2 1/4” | Parallel Hub Drum | 1500kg | Parallel | Ford |
| 12" x 2" | 2 tonne Hub Drum | 2500 kg | 2 tonne | 6 stud LCR/ Nissan |
| 12" x 2" | 2 tonne Hub Drum | 2500 kg | 2 tonne | 5 stud LCR |
| 12” x 2” | Drum | 2500 kg | Can be fitted to 1.5t, 2t & 3t hubs | 6 stud LCR/ Nissan |
| 12” x 2” | Drum | 2500 kg | Can be fitted to 1.5t, 2t & 3t hubs | 5 stud LCR |
| 12” x 2” | Drum | 2500 kg | Can be fitted to 1.5t, 2t & 3t hubs | Range Rover / Land Defender |
| 12” x 2” | Drum | 2500 kg | Can be fitted to 1.5t, 2t & 3t hubs | Ford F100 |
| 12” x 2” | Drum | 2500 kg | Can be fitted to 1.5t, 2t & 3t hubs | Bedford |
| 12” x 2” | Drum | 2500 kg | Can be fitted to 3t hubs | Blank (can be drilled to suit Bedford) |

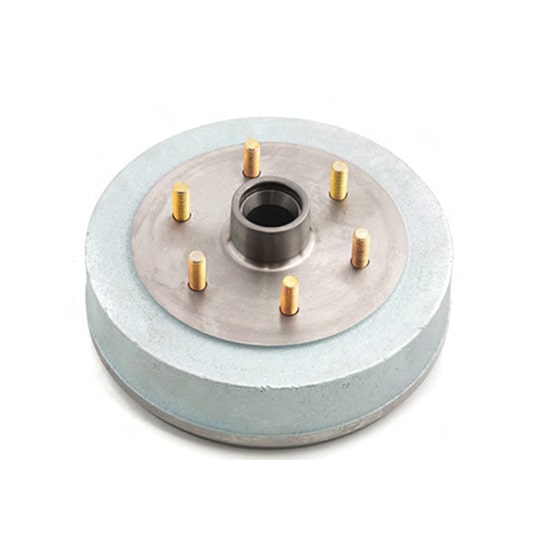

Brake drums are selected or nominated by the drum diameter, the wheel drilling pattern and in the case of hub drums, the machining profile and appropriate bearings. MAA SUKHRALA can provide brake drums drilled to suit the majority of popular wheel drilling patterns ex stock and can manufacture to suit other drilling patterns on request. The table below lists popular electric brake drums.
